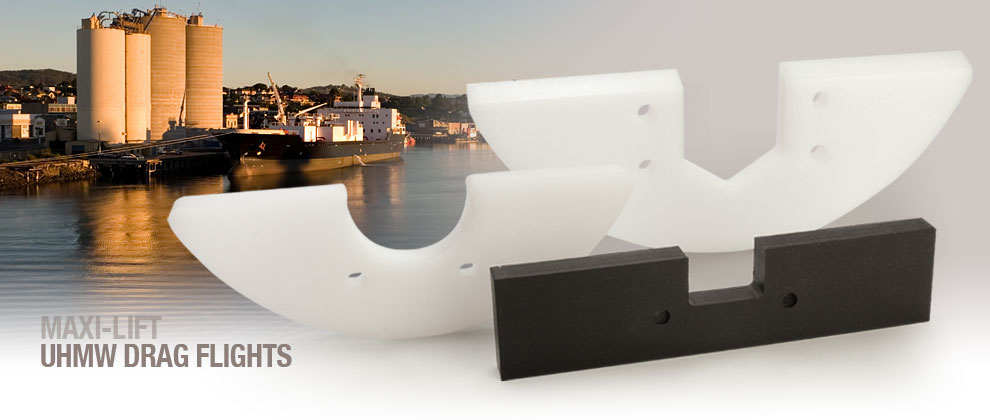

* Photos of drag conveyor flights are representations of flights. Actual flights may vary in size and shape.
| Drag Conveyor Flights | ||||||
|---|---|---|---|---|---|---|
| Flights: |  |
 |
 |
 |
 |
 |
| Size, Inches (Length & Thickness) |
Screw Conveyor Superflo |
Essmueller Company Peerless |
Thomas Conveyor Fli-Con |
Jeffrey Multi-Flow |
Ehrsam Dracon |
En Masse |
| 6 x 1/4 | X | – | – | X | – | X |
| 6 x 3/8 | X | – | X | – | X | X |
| 9 x 1/4 | X | – | – | X | – | X |
| 9 x 3/8 | X | X | – | X | X | X |
| 9 x 1/2 | X | X | X | – | – | X |
| 10 x 3/8 | – | – | – | – | – | X |
| 10 x 1/2 | – | – | – | – | – | X |
| 12 x 3/8 | X | X | – | X | X | X |
| 12 x 1/2 | X | X | X | – | – | X |
| 14 x 3/8 | X | X | – | X | X | X |
| 14 x 1/2 | X | X | – | – | – | X |
| 16 x 3/8 | X | X | – | X | – | X |
| 16 x 1/2 | X | X | X | – | – | X |
| 18 x 3/8 | X | – | – | X | – | X |
| 18 x 1/2 | X | X | – | – | – | X |
| 20 x 1/2 | – | X | – | X | – | X |
| 20 x 5/8 | – | – | X | – | – | X |
| 24 x 1/2 | – | X | – | X | – | X |
| 24 x 5/8 | – | – | X | – | – | X |
* Photos of drag conveyor flights are representations of flights. Actual flights may vary in size and shape.
ROUND BOTTOM FLIGHTS
Round bottom flights are standardized according to conveyor manufacturer. Most common sizes and styles are stocked for immediate shipment. Custom round bottom flights can be made and shipped quickly.
EN MASSE FLIGHTS
The en masse flight is the most customized flight design. It can vary in height, length and thickness. There are few standardized en masse sizes.
Natural UHMW – White in color. This UHMW sheet meets FDA/USDA and 3-A dairy guidelines. It is an excellent high wear material.
Reprocessed or Recycled UHMW – Green or Black in color. This sheet is a blend of virgin and regenerated UHMW polymers that maintain an acceptable combination of properties for less demanding applications. This sheet is not FDA approved.
AntiStatic UHMW – Black in color. This UHMW sheet protects parts sensitive to build up of static electricity. It permits partial transmission of electrical charge, thus dissipating static build-up. It provides a slick surface.
Dry-Slide UHMW – Black in color. This UHMW sheet is modified with special dry additives for enhanced coefficient of friction and antistatic properties. This is an effective sheet in dusty environments where components need lubrication without build-up.
Oil Filled UHMW – Brown in color. This UHMW sheet meets FDA/USDA guidelines for food and pharmaceutical handling. It has an oil additive to lubricate mating surfaces. This Oil Filled UHMW is used in closed loop continuous chain applications. It is not recommended for dusty applications.
| Prime UHMW Polyethylene Sheeting (Per Sheet) 48″ X 120″ | ||
|---|---|---|
| Gauge, Inches | Weight, Lbs./Sheet | Tolerance |
| 1/16″ | 13 | +/- 10% |
| 1/8″ | 25 | +/- 10% |
| 3/16″ | 38 | +/- 10% |
| 1/4″ | 50 | +/- 10% |
| 3/8″ | 75 | +/- 10% |
| 1/2″ | 100 | +/- 10% |
| 5/8″ | 125 | +/- 10% |
| 3/4″ | 150 | +/- 10% |
| 1″ | 200 | +/- 10% |
| 1 1/4″ | 250 | +/- 10% |
| 1 1/2″ | 300 | +/- 10% |
| 1 3/4″ | 350 | +/- 10% |
| 2″ | 400 | +/- 10% |
| 2 1/2″ | 500 | +/- 10% |
| 3″ | 600 | +/- 10% |
| 3 1/2″ | 700 | +/- 10% |
| 4″ | 800 | +/- 10% |
Temperature Range: Continuous -22° F to +180° F
