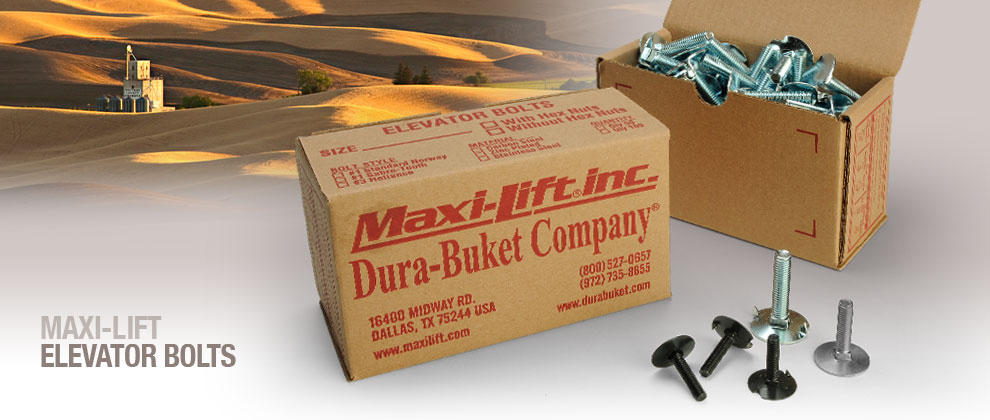

  6. MAXI LIFT ELEVATOR BOLTS
Category:
General Details
Maxi-Lift exceeds all industry standards for grade 2 elevator bolts.

STANDARD ELEVATOR BOLT

Standard Elevator BoltStandard Elevator Bolt CAD

Standard #1 Norway

  • Carbon Steel
  • Stainless Steel
  • Zinc Plated
Standard Elevator Bolt
Size (in) Weight/100 pcs (lbs) Case Qty. Keg Bulk Qty.
1/4 X 3/4 2.94 1200 2000
1/4 X 1 * 3.24 1200 1700
1/4 X 1 1/4 * 3.43 1200 1500
1/4 X 1 1/2 * 3.73 1200 1300
1/4 X 1 3/4 3.98 1200 1200
1/4 X 2 4.29 1200 1000
1/4 X 2 1/4 4.88 600 900
1/4 X 2 1/2 4.92 600 800
5/16 X 3/4 4.76 1200 1200
5/16 X 1 * 5.05 1200 1000
5/16 X 1 1/4 * 5.55 1200 900
5/16 X 1 1/2 * 6.38 600 800
5/16 X 1 3/4 6.5 600 700
5/16 X 2 * 7.12 600 600
5/16 X 2 1/4 7.43 600 550
5/16 X 2 1/2 7.78 600 500
3/8 X 1 1/4 6.6 600 750
3/8 X 1 1/2 7.1 600 700
3/8 X 1 3/4 7.66 600 600
3/8 X 2 * 8.31 600 500
3/8 X 2 1/4 9.35 600 450
3/8 X 2 1/2 9.83 600 400
3/8 X 3 10.25 600 300

SABRE-TOOTH™ ELEVATOR BOLT

Sabre-Tooth Elevator BoltSabre-Tooth Elevator Bolt CAD

Sabre-Tooth™

  • Carbon Steel
  • Zinc Plated
Sabre-Tooth Elevator Bolt
Size (in) Weight/100 pcs (lbs) Case Qty. Keg Bulk Qty.
1/4 X 3/4 2.94 1200 2000
1/4 X 1 * 3.24 1200 1700
1/4 X 1 1/4 * 3.43 1200 1500
1/4 X 1 1/2 * 3.73 1200 1300
1/4 X 1 3/4 3.98 1200 1200
1/4 X 2 * 4.29 1200 1000
1/4 X 2 1/4 4.88 600 900
1/4 X 2 1/2 4.92 600 800
5/16 X 3/4 4.76 1200 1200
5/16 X 1 * 5.05 1200 1000
5/16 X 1 1/4 * 5.55 1200 900
5/16 X 1 1/2 * 6.38 600 800
5/16 X 1 3/4 * 6.5 600 700
5/16 X 2 * 7.12 600 600
5/16 X 2 1/4 7.43 600 550
5/16 X 2 1/2 7.78 600 500
3/8 X 1 1/4 6.6 600 750
3/8 X 1 1/2 7.1 600 700
3/8 X 1 3/4 7.66 600 600
3/8 X 2 * 8.31 600 500
3/8 X 2 1/4 9.35 600 450
3/8 X 2 1/2 9.83 600 400
3/8 X 3 10.25 600 300

RELIANCE ELEVATOR BOLT

Reliance Elevator BoltReliance Elevator Bolt CAD

#3 Slotted Head

  • Carbon Steel
  • Zinc Plated
Reliance Elevator Bolt
Size (in) Weight/100 pcs (lbs) Case Qty. Keg Bulk Qty.
1/4 X 3/4 2.7 1200 2400
1/4 X 1 1/4 3 1200 1800
1/4 X 1 1/2 3.5 1200 1800
5/16 X 1 1/4 4.9 1200 1200

HEX HEAD BOLT

Hex Head BoltHex Head Bolt CAD

Hex-Head©

  • Zinc Plated
  • Grade 5
  • Used with Chain Attachments

Maxi-Lift continually applies metallography tests to our fasteners to ensure the finest quality parts are upheld. ASTM certificates are on file and available upon request.

Hex Head Bolts
Size (in) Weight/100 pcs (lbs) Case Qty. Keg Bulk Qty.
1/2 X 1 8.5 1200 1700
1/2 X 1 1/4 9.45 1200 1500
1/2 X 1 1/2 10.7 1200 1300
3/8 X 1 4.15 1200 1700
3/8 X 1 1/4 4.8 1200 1500
3/8 X 1 1/2 5.65 1200 1300



* Available in Stainless Steel

ALL WASHERS AND SPACERS
Flat
Flat Washer/Spacer I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4 100 1.3
5/16 100 2.0
3/8 100 3.0
1/2 100 3.8

Available in zinc and stainless

Split Ring Lock
Split Ring Lock Washer/Spacer I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4 100 0.2
5/16 100 0.4
3/8 100 0.6
1/2 100 1.4

Available in zinc and stainless

Fender
Fender Washer/Spacer I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4 100 1.3
5/16 100 2.0
3/8 100 3.0

Available in zinc and stainless – Available in Large Outside Diameter

Leather
Leather Washer/Spacer I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4 100 0.3
5/16 100 0.3
3/8 100 0.3
Poly
Poly Washer/Spacer I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4 100 2.0
5/16 100 1.8
3/8 100 2.0

Available in 1/4″ and 1/2″ thick

Neoprene
Neoprene Washer/Spacer I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4 100 1.1
5/16 100 1.1
3/8 100 1.1

Available in 1/4″ thick

NUTS

NUT ACCESSORY PACK

Hex, Nut, Flat & Lock Washer
Washer And Spacer Accessory Pack Inside Diameter (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
2.94 1200 2000
3.24 1200 1700
3.43 1200 1500
3.73 1200 1300

Available in zinc and stainless

ALL NUTS

Standard Hex
Standard Hex Nut I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4-20 100 0.7
5/16-18 100 1.1
3/8-16 100 1.6
1/2 100 3.8

Available in zinc and stainless

Standard Flange Serrated Lock
Standard Flange Serrated Lock Nut I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4-20 100 0.9
5/16-18 100 1.2
3/8-16 100 1.8

Available in zinc and stainless

Large Flange Serrated Lock
Large Flange Serrated Lock Nut I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4-20 100 1.2
5/16-18 100 2.3
3/8-16 100 2.8

Available in zinc

Nylon Insert Lock
Nylon Insert Lock Nut I.D. (in) Pkg. Qty. (pcs) Pkg. Weight (lbs)
1/4-20 100 0.8
5/16-18 100 1.1
3/8-16 100 2.8

Available in zinc and stainless

RECOMMENDED BUCKET INSTALLATION

DIRECTIONS FOR PROPER ELEVATOR BOLT TORQUE ON BELT

  1. To tighten the nuts, use a torque wrench that will “click” out when proper setting is reached.
  2. Run the elevator with the buckets empty for 4 hours.
  3. Check all bolts to insure that the proper torque is maintained.
Recommended Torque For Elevator Bolts
Shank Diameter (in) Steel Stainless
in./lbs. kgm/m. ft./lbs. in./lbs. kgm/m. ft./lbs.
1/4 50 0.57 4 86 0.99 7.16
5/16 96 1.10 8 177 2.04 14.75
3/8 180 2.07 15 – – –

RECOMMENDED BUCKET INSTALLATION

Recommended Installation

* A locking device should be used on all elevator bucket installations.
